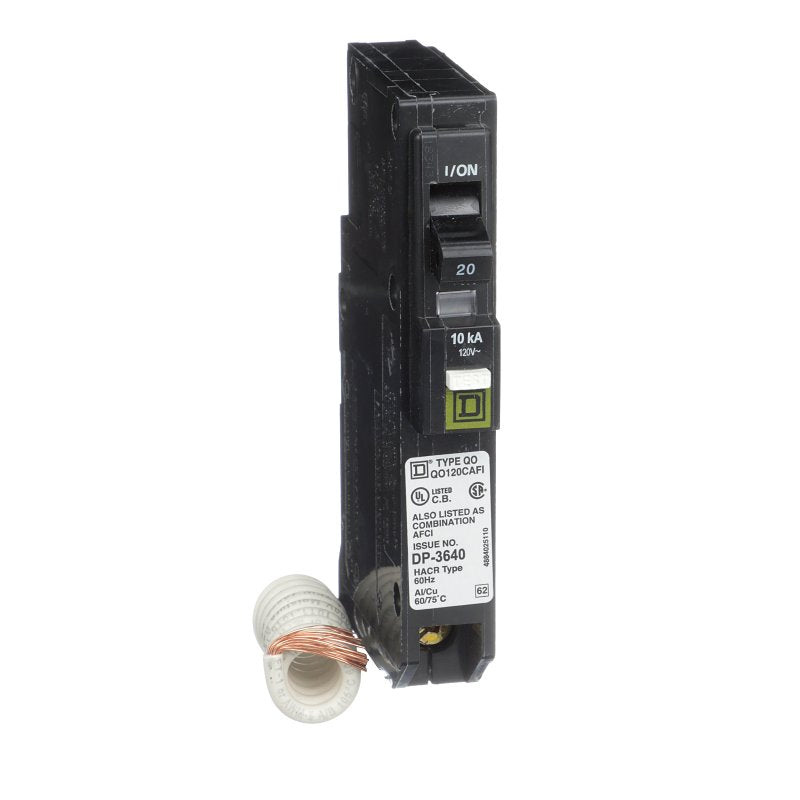

CIRC BRKR ARC FAULT COMBO 20A-35315

Product Overview

Combination CAFCI 3/4 in single-pole circuit breaker, designed for overload and over-current protection of an electrical system. thermal magnetic tripping mechanism. Designed to detect arcs that are caused by damaged, aged or improperly used wires or cords and to disconnect the power. Visi-Trip indicator to identify which circuit is out in the load center. With time saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. 10 kA interrupting rating. Uses one space per breaker. 120 VAC. UL Listed. Carded.

Product Details

• Current Rating: 20 A
• Dimensions: 2-29/32 in L x 3/4 in W x 4-3/4 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Number Of Spaces: 1
• Operating Frequency: 50/60 Hz
• Suitable for: NQ and NQOD Panel Boards OEM Mounting Bases QO Load Centers and Speed-D Switchboard Distribution Panels
• Terminal Type: Pressure Contact
• Trip Type: Fixed
• Type: AFCI
• Voltage Rating: 120/240 V
• Wire Size: 12 to 8 14 to 8 AWG

Features

• Provides great circuit protection
• Durable and reliable
• Plug-on neutral design and shorter footprint for faster installs
• Simple design and clear instructions for quick set-up
